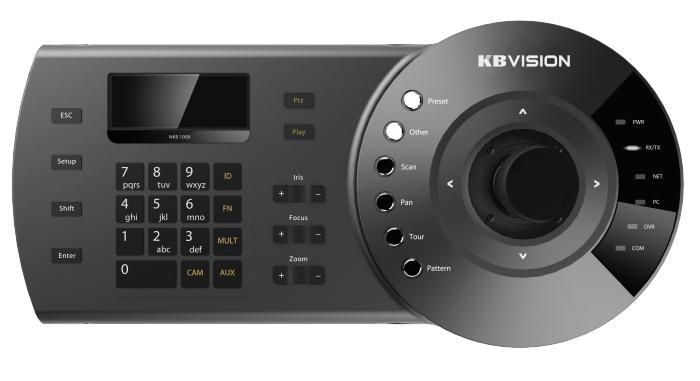

Bàn điều khiển Camera IP SpeedDome Kbvision KH-100NK

Model

KH-100NK

Keyboard Keypanel

Electromechanical

Joystick

3-axis, vector -solving, with twisting, return to-center head

Keyboard Connector

RJ-45, RS232, RS485, RS422, USB

Keyboard Communication

Direct Mode, Network Mode

Direct Mode

Interface: RS232/ RS485

DVR Protocol: DH2

Dome Protocol: PELCO-D/ PELCO-P/ PELCO-D1/ PELCO-P1……

Network Mode

Interface: RJ45

DVR/ Network Dome: IP Address/ Port/ Protocol

Display

LCD, 75.2mm x 3 3.85mm

Power Supply

Power adapter, input 100~240VAC 50Hz / 60Hz, output 12VDC/ 1000mA

Power Consumption

5W

Working Temperature

-10°C ~ +55°C

Working Humidity

10%~90%

Atmosphere Pressure

86kpa~106kpa

Dimension

330 x 160 x 37.5 mm (W x D x H) (height: 100mm including joystick)

Weight

2.5kg
