Sản phẩm
|
Bo mạch chủ
|
|
Tên Hãng
|
Asrock
|
|
Model
|

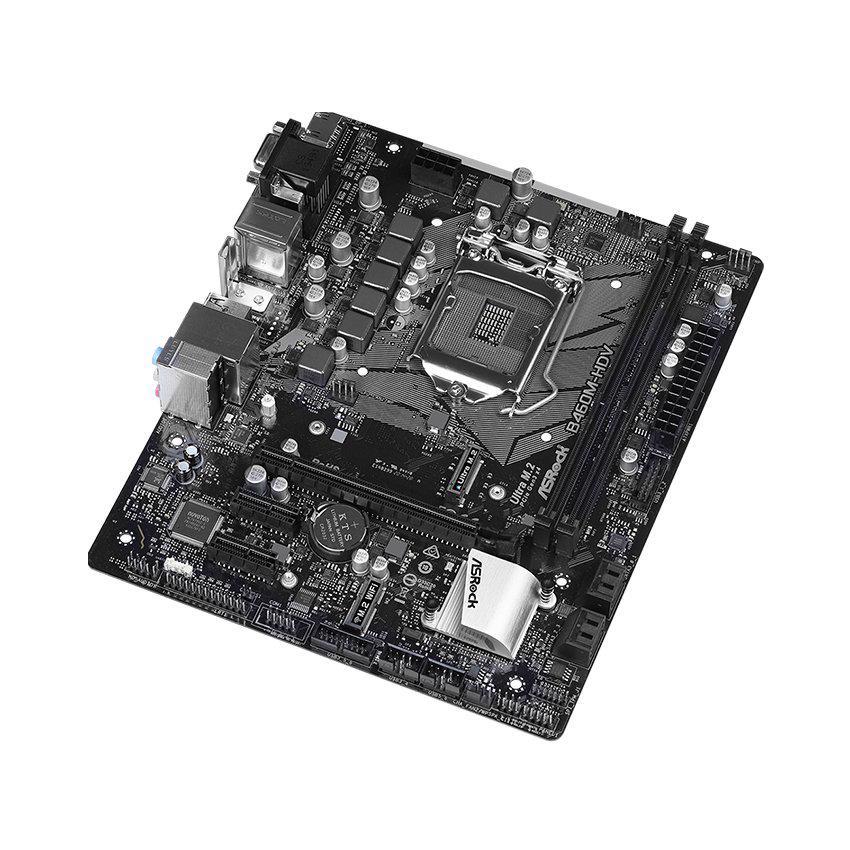

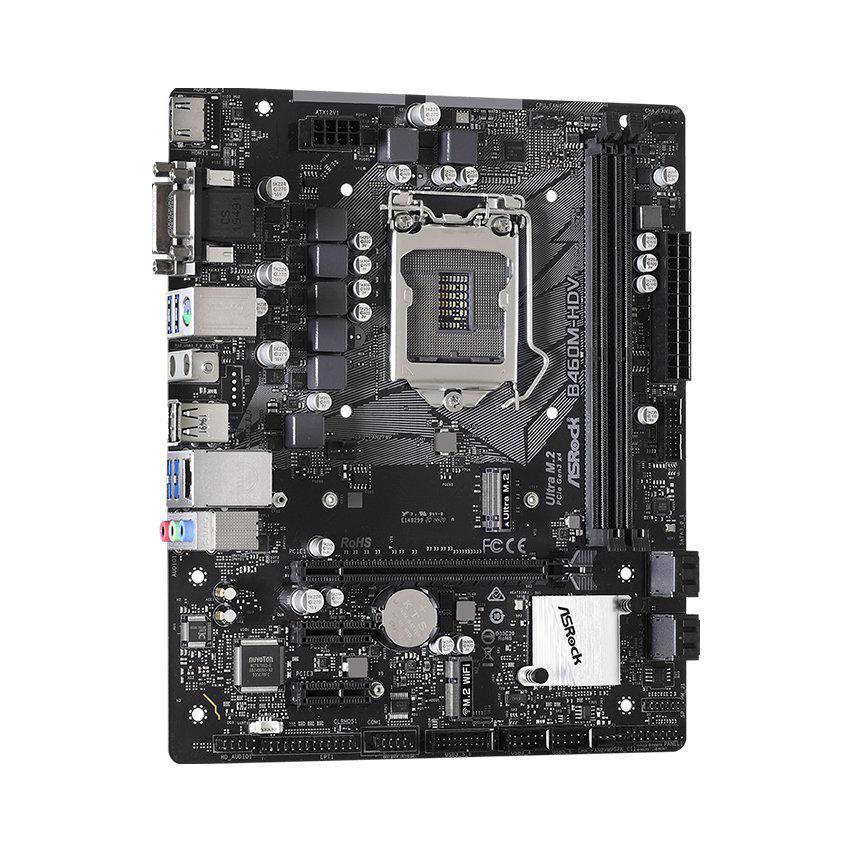

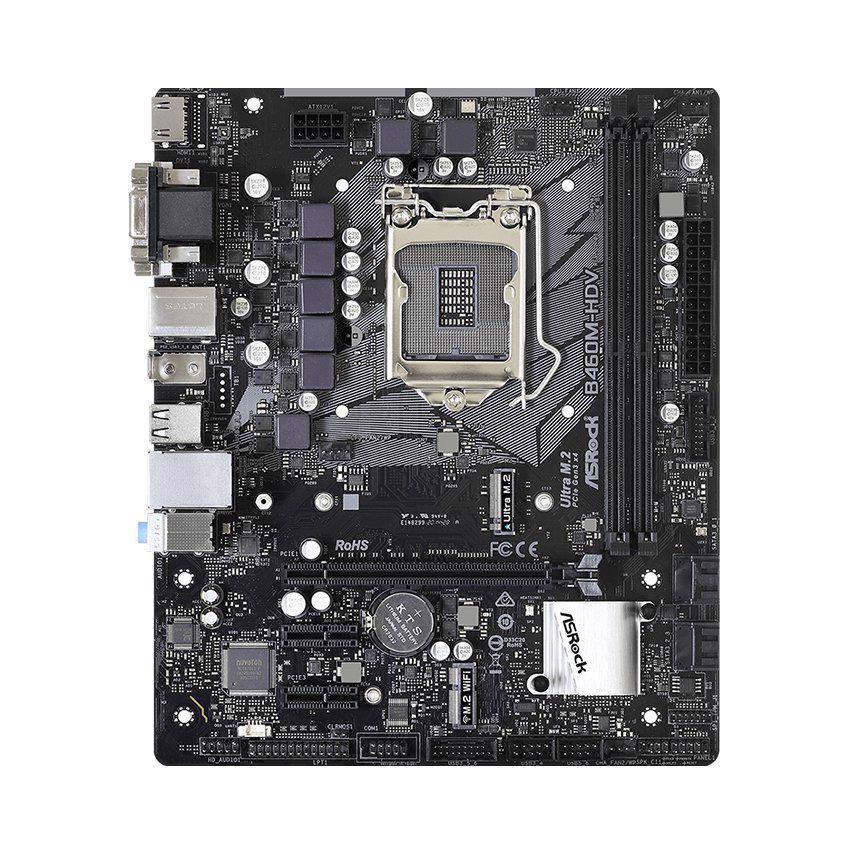

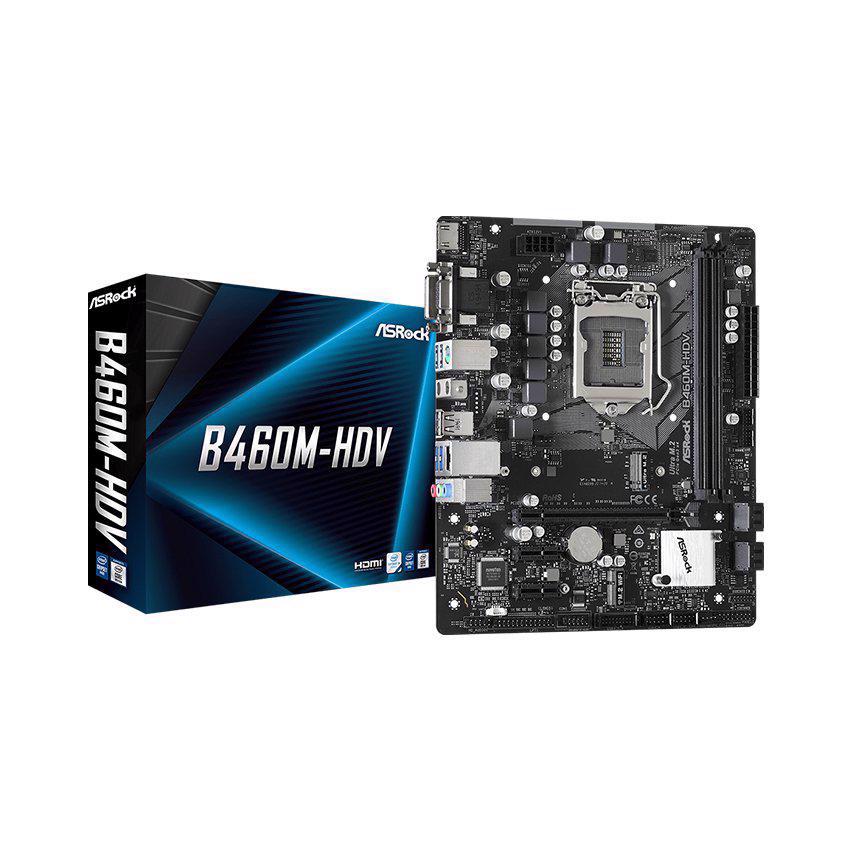

B460M-HDV
|
|
CPU hỗ trợ
|
Intel
|
|
Chipset
|
B460
|
|
RAM hỗ trợ
|
2 x DDR4 DIMM Slots ( tối đa 64GB )
Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory
|
|
Khe cắm mở rộng
|
1 x PCI Express 3.0 x16 Slot
2 x PCI Express 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
|
|
Ổ cứng hỗ trợ
|
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
|
|
Cổng kết nối (Internal)
|
1 x Print Port Header
1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
|
|

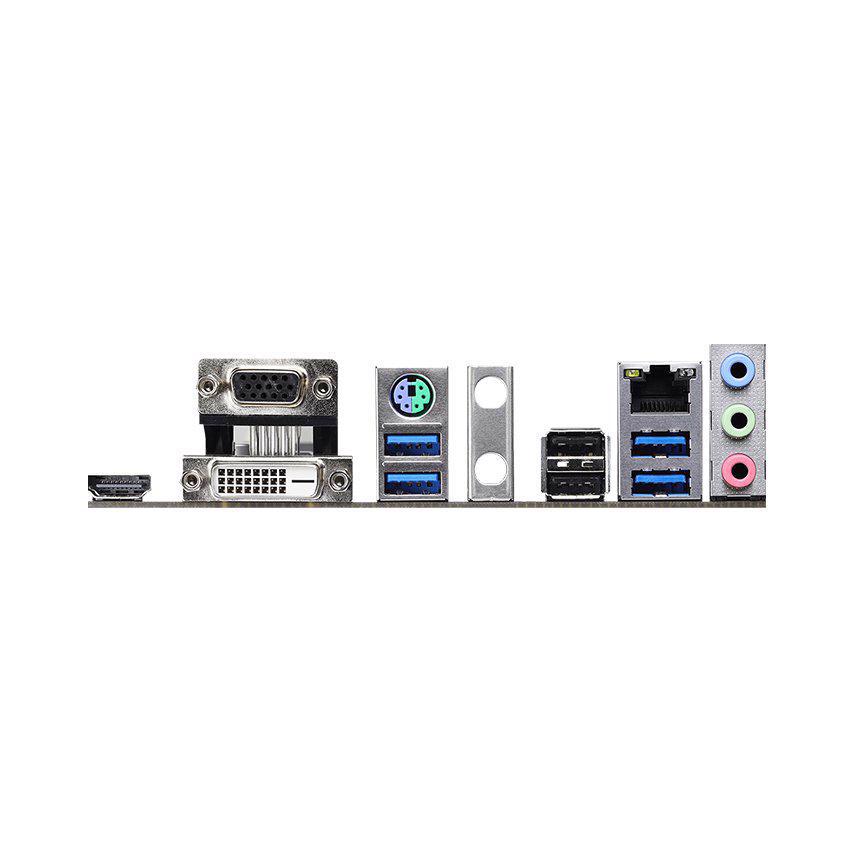

Cổng kết nối (Back Panel)
|
1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
LAN / Wireless
|
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel® I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
|
|
Kích cỡ
|
Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
|
