Sản phẩm
|
Bo mạch chủ
|
|
Tên Hãng
|
Asrock
|
|
Model
|

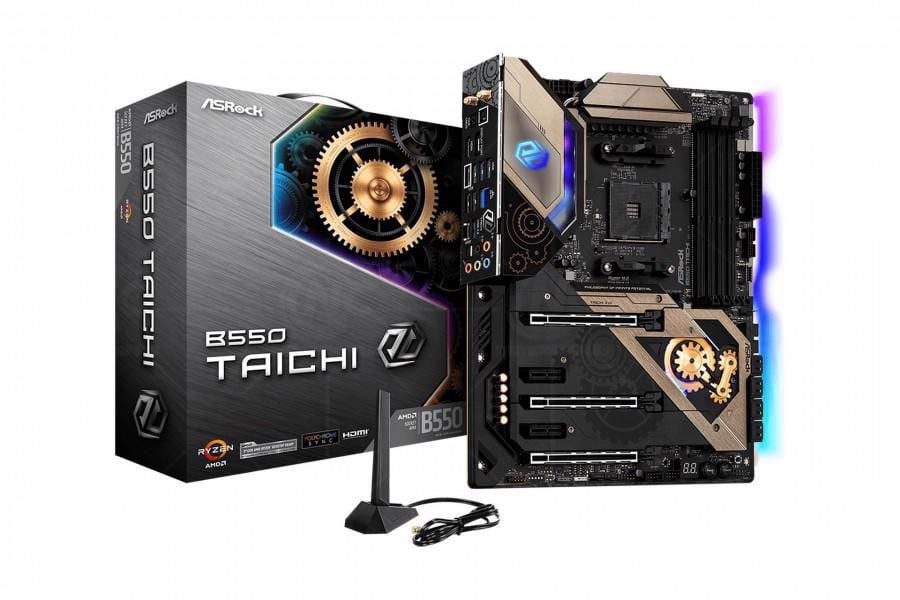

B550 Taichi
|
|
CPU hỗ trợ
|
AMD
|
|
Chipset
|
B550
|
|
RAM hỗ trợ
|
4 x DDR4 DIMM Slots ( 128GB )
|
|
Khe cắm mở rộng
|
3 x PCI Express x16 Slots
3 x PCI Express x16 Slots
2 x PCI Express 3.0 x1 Slots
1 x Vertical M.2 Socket
|
|
Ổ cứng hỗ trợ
|
4 x SATA3 6.0 Gb/s
4 x SATA3 6.0 Gb/s
1 x Hyper M.2 Socket (M2_1)
1 x Ultra M.2 Socket (M2_2)
|
|
Cổng kết nối (Internal)
|
1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Clear CMOS Button
|
|
Cổng kết nối (Back Panel)
|
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
1 x BIOS Flashback Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
|
|
LAN / Wireless
|
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
Kích cỡ
|
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
|
