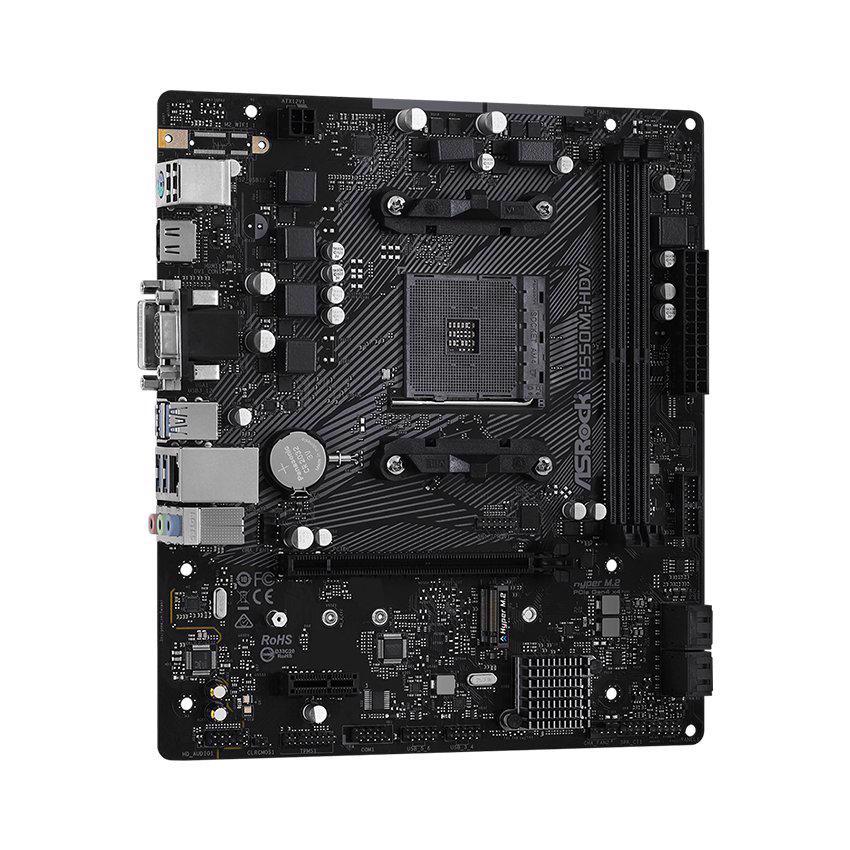

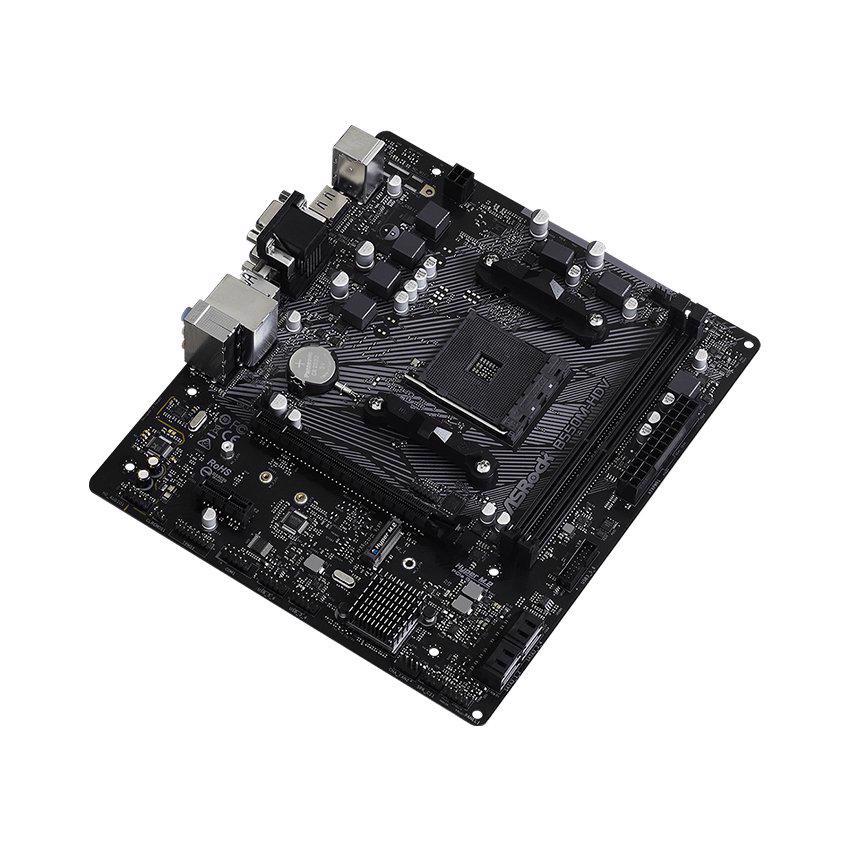

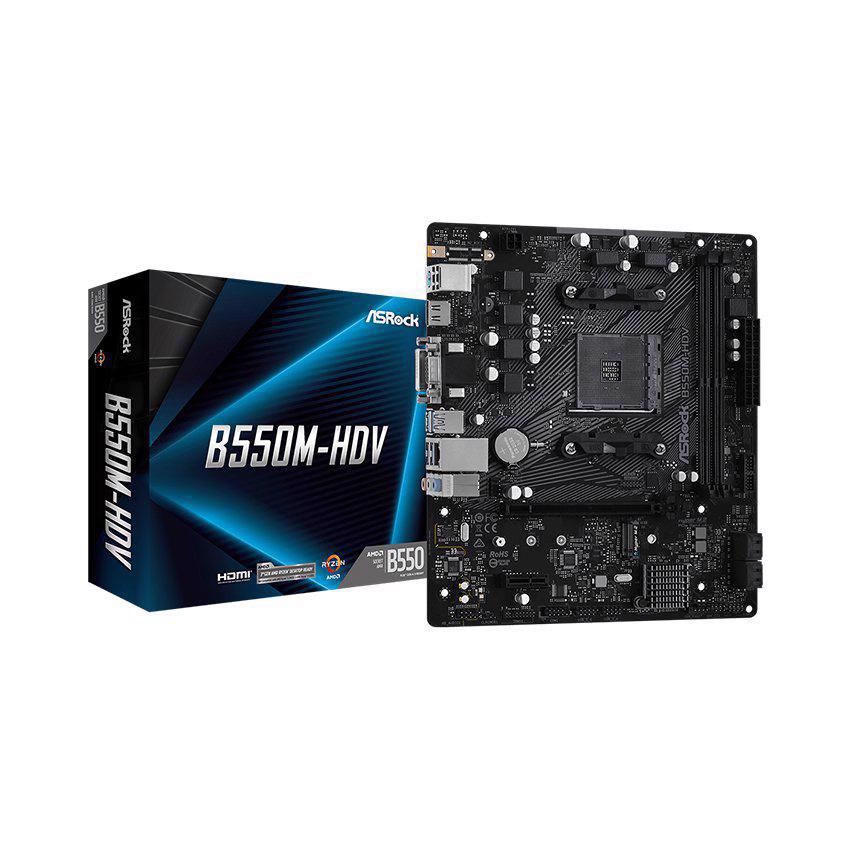

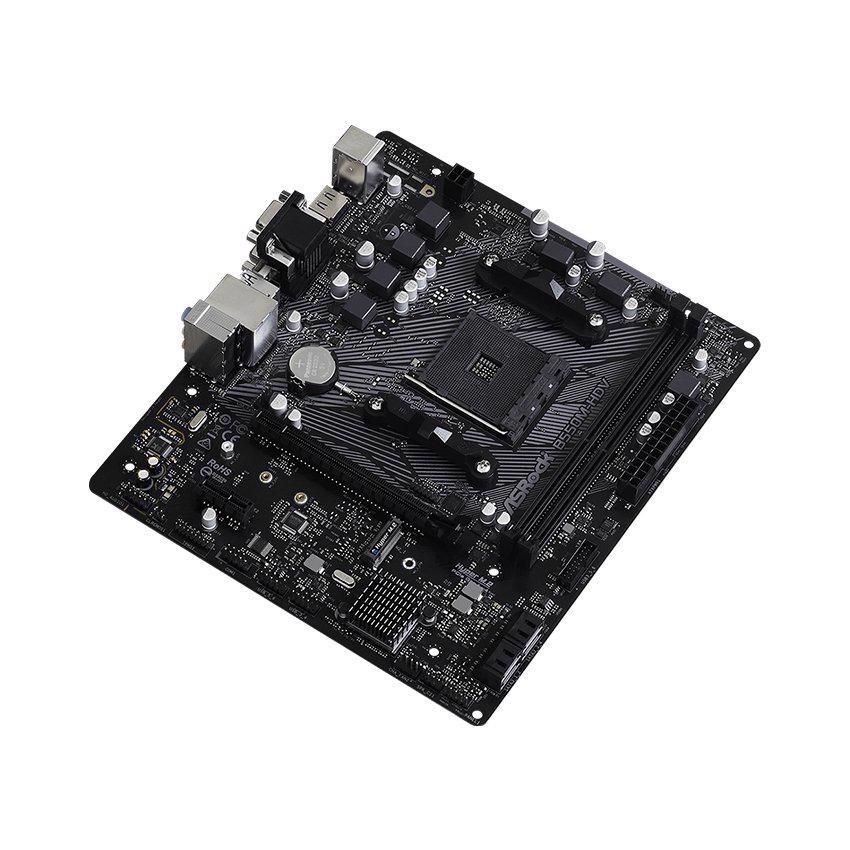

Mainboard ASROCK B550M HDV (AMD B550, Socket AM4, m-ATX, 2 khe RAM DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asrock

Model

B550M-HDV

CPU hỗ trợ

AMD

Chipset

B550

RAM hỗ trợ

2 x DDR4 DIMM Slots ( 64GB )

Khe cắm mở rộng

1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series APUs
1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
1 x PCI Express 3.0 x1 Slot

Ổ cứng hỗ trợ

4 x SATA3 6.0 Gb/s
1 x Hyper M.2 Socket

Cổng kết nối (Internal)

1 x SPI TPM Header
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Cổng kết nối (Back Panel)

1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Kích cỡ

Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
