Mainboard Gigabyte-B85M-D3V/A - Chipset Intel B85
Mainboard Gigabyte-B85M-D3V/A - Chipset Intel B85
Mainboard Gigabyte-B85M-D3V/A - Chipset Intel B85
Mainboard Gigabyte-B85M-D3V/A - Chipset Intel B85

Mainboard Gigabyte-B85M-D3V/A - Chipset Intel B85

Thương hiệu: Gigabyte Mã sản phẩm: GA-B85M-D3V/A
1,690,000₫

Mainboard Gigabyte-B85M-D3V/A - Chipset Intel B85

Khuyến mãi
Call: 0939006007 MUA NHANH

Gọi đặt mua 02923730366 (8:00 - 20:00)

Chỉ có tại Tân Hưng Phát

Zalo OA

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
    Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả miễn phí trong 30 ngày
    Đổi trả miễn phí trong 30 ngày

ĐẶC ĐIỂM NỔI BẬT

Nội dung đang được cập nhật
Xem thêm

Thông số kỹ thuật

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® B85 Express Chipset
Bộ nhớ
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp Integrated Graphics Processor:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
    * The DVI-D port does not support D-Sub connection by adapter.
  3. Maximum shared memory of 1 GB
Âm thanh
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  3. 1 x PCI slot
Giao diện lưu trữ Chipset:
  1. 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)
  2. 2 x SATA 3Gb/s connectors (SATA2 4/5)
USB Chipset:
  1. 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 2 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.0/2.0 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x serial port header
  12. 1 x Clear CMOS jumper

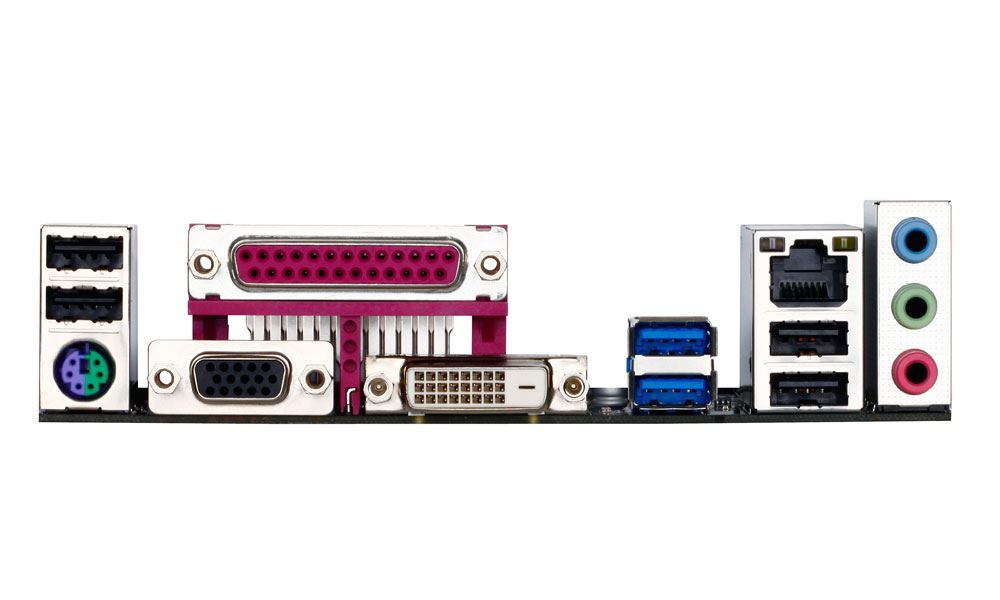

Kết nối bảng phía sau
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x parallel port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 2 x USB 3.0/2.0 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In, Line Out, Mic In)
Điều khiển I/O
  1. iTE® I/O Controller Chip
Theo dõi phần cứng
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Tính năng duy nhất
  1. Support for Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    USB Blocker
    Smart TimeLock
    Smart Recovery 2
  4. Support for ON/OFF Charge
Gói phần mềm
  1. Norton Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
  4. Intel® Small Business Advantage
Hệ điều hành
  1. Support for Windows 8/7
Hệ số khuôn
  1. Micro ATX Form Factor; 24.4cm x 17.4cm
Ghi chú
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website
