Intel® Socket 1151 for 8th Generation Core™ Processors
Chipset / Socket
Intel® B360
Bộ nhớ (RAM)
- Dual Channel DDR4 Memory Technology - 4 x DDR4 memory slots, support up to 64GB - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0
Công nghệ đa GPU
• Không hỗ trợ
Khe cắm mở rộng
• 2 x PCI Express 3.0 x16 Slots • 2 x PCI Express 3.0 x1 Slots
LAN / Wireless
• Intel I219-V Gigabit LAN controller
Âm thanh
• Realtek® ALC892 Codec
Cổng kết nối (Internal)
• 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 4 x SATA 6Gb/s connectors • 1 x USB 3.1 Gen2 Type-C port • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) • 1 x 4-pin CPU fan connector • 3 x 4-pin system fan connectors • 1 x Front panel audio connector • 2 x Front panel connectors • 1 x 5050 RGB LED strip 12V connector • 1 x Thunderbolt add-on card connector • 1 x TPM module connector • 1 x Chassis Intrusion connector • 1 x Clear CMOS jumper

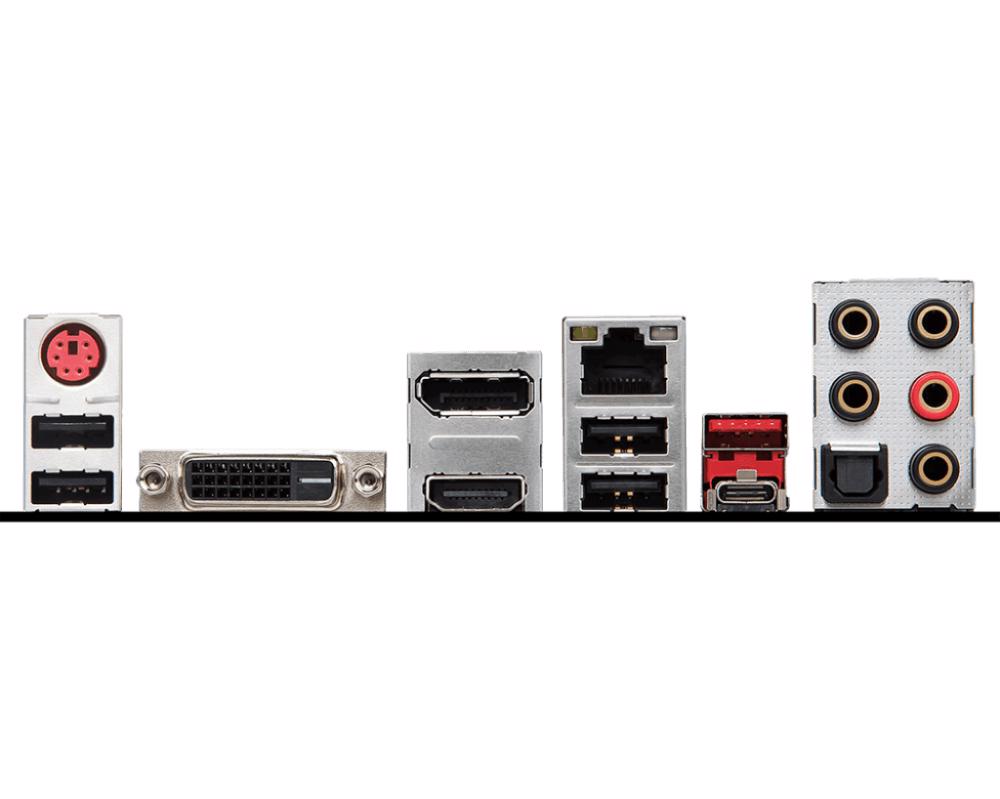

Cổng kết nối (Back Panel)
• PS/2 Combo Port • DisplayPort • LAN Port • USB 3.1 Gen2 Type A • HD Audio Connectors • USB 2.0 Port • DVI-D Port • HDMI Port • USB 2.0 Port • USB 3.1 Gen2 Type C • Optical S/PDIF OUT
