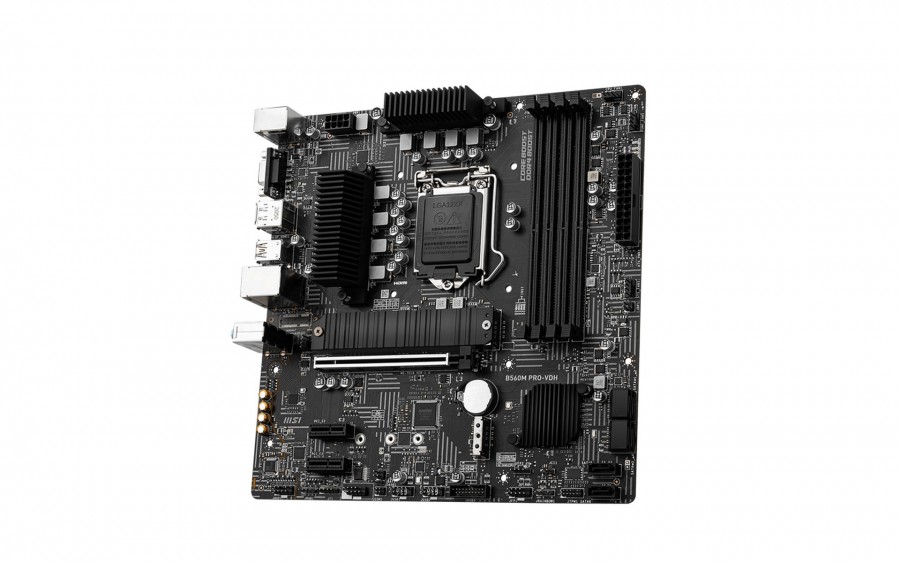

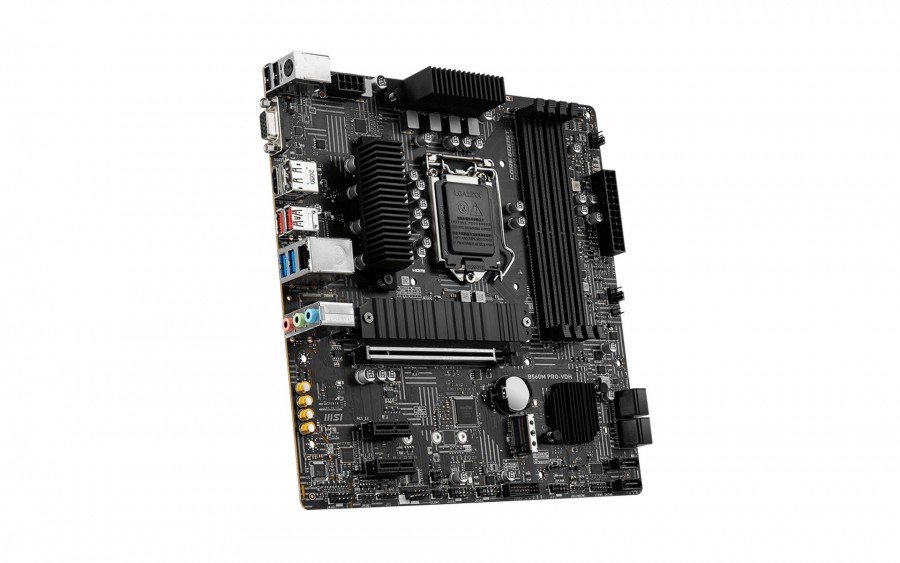

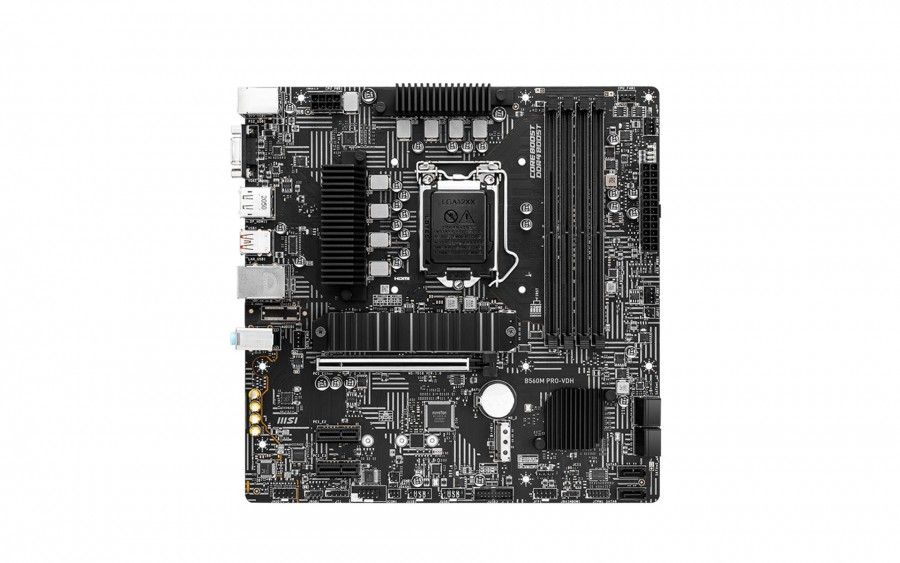

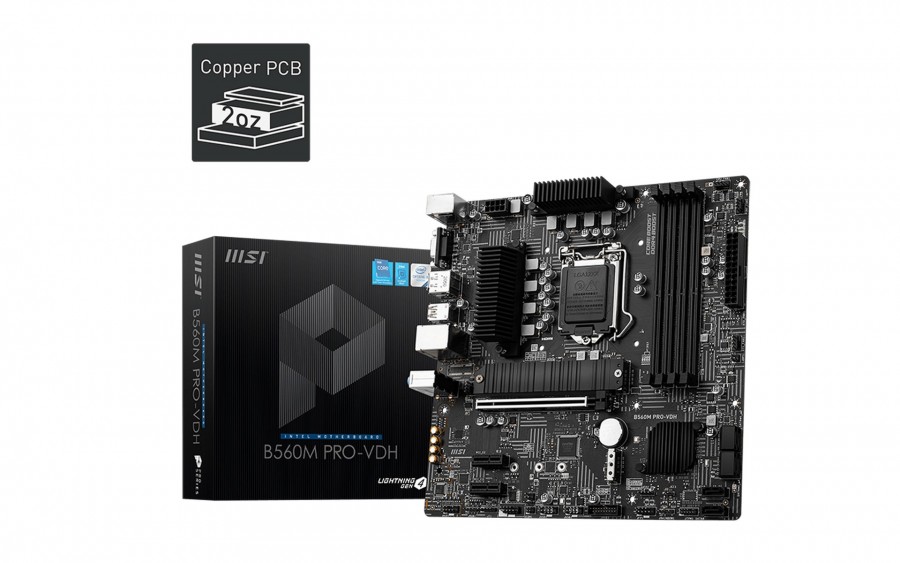

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1200
Chipset
Intel® B560 Chipset
RAM hỗ trợ
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Tần số ép xung tối đa: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz
Hỗ trợ chế độ kênh đôi Hỗ trợ bộ nhớ không ECC, không đệm Hỗ trợ cấu hình bộ nhớ cao cấp Intel® (XMP)
Khe cắm mở rộng
2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel ® CPU PCI_E2 (from B560 chipset)
Hình ảnh
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz
Chỉ khả dụng trên các bộ xử lý có đồ họa tích hợp. Thông số kỹ thuật đồ họa có thể khác nhau tùy thuộc vào CPU được cài đặt.
Đa card màn hình
Supports 2-Way AMD® CrossFire™ Technology
Lưu trữ
6x SATA 6Gb/s ports (From B560 chipset)
2x M.2 slot (Key M)
M2_1 slot
Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA2 sẽ không khả dụng khi cài đặt M.2 SATA SSD vào khe cắm M2_1.
Trước khi sử dụng mô-đun bộ nhớ Intel® Optane ™, hãy đảm bảo rằng bạn đã cập nhật trình điều khiển và BIOS lên phiên bản mới nhất từ trang web MSI.
USB
Intel® B560 Chipset

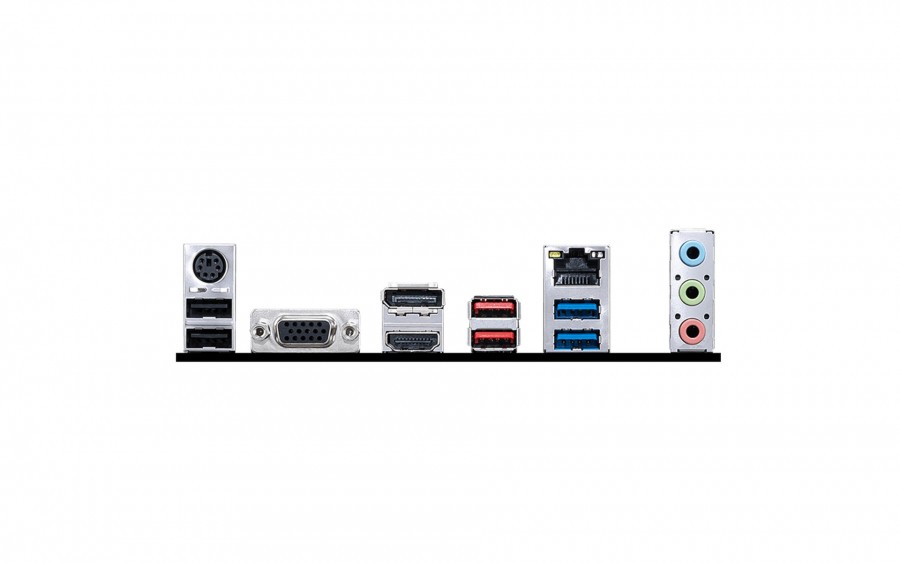

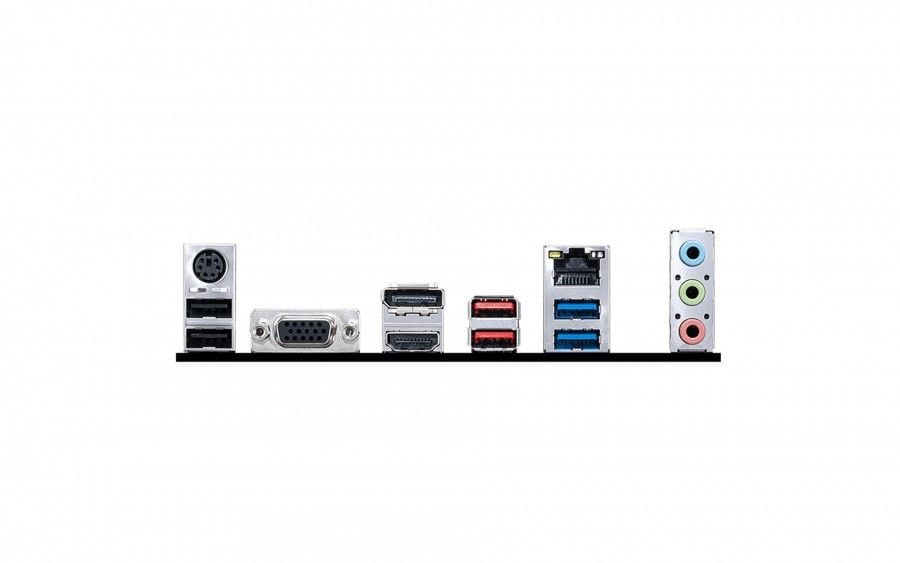

2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors
Âm Thanh
Realtek® AL897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® 8125B 2.5Gbps LAN controller
Cổng kết nối I/O bên trong
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
