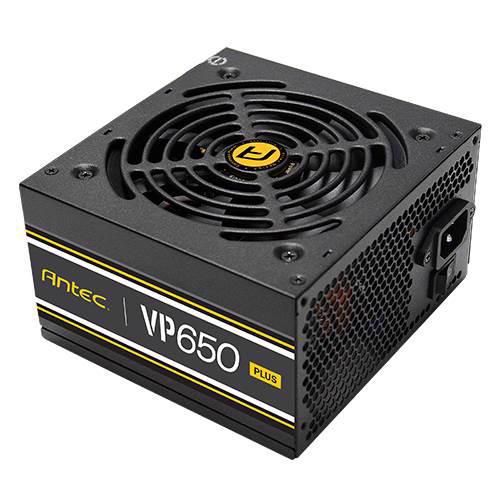

| Model | VP650 PLUS |
| Modular | Non-Modular |
| Dimension (W x L x H) | 140(D)*150(W)*86(H) |
| Input Voltage | 100-240 VAC ±10% |
| Input Current | 10A-5A |
| Input Frequency Range | 47Hz-63Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 85% Typically |
| Protection | UVP/OVP/SCP/OPP/NLO |
| Output Capacity | 650W |
| Regulatory | TUV/cTUVus/CB/CE/FCC |
| Fan | 120mm Silent Fan |
| Certifications | 80 Plus |
| Connector | 1 x MB 24(20+4) Pin |
| 1 x 8(4+4) Pin EPS 12V | |
| 2 x 8(6+2) Pin PCI-E | |
| 7 x SATA | |
| 2 x Molex | |
| 1 x FDD | |
| Net Weight | 1.86 Kgs |
| Gross Weight | 2.27 Kgs |
