General Information |
Product Type |
ATX12V & EPS12V Power Supply |
Product Name |

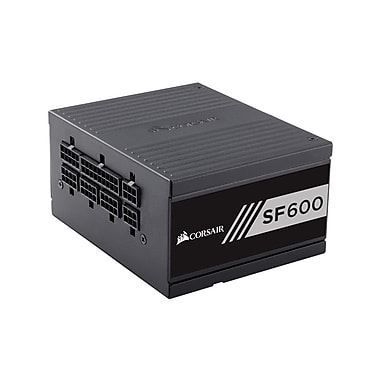

SF Series SF600 - 600 Watt 80 PLUS Gold Certified High Performance SFX PSU |
Brand Name |
Corsair |
Manufacturer |
Corsair |
Product Series |
SF |
Product Model |
SF600 |
Manufacturer Website Address |
http://www.corsair.com/us/ |
Manufacturer Part Number |
CP-9020105-NA |
Technical Information |
Efficiency |
90% |
Number of Fans |
1 |
Modular |
Yes |
Power Description |
Input Voltage |
230 V AC |
Input Voltage |
120 V AC |
Output Power |
600 W |
Output Voltage |
3.3 V DC @ 20 A |
Output Voltage |
5 V DC @ 20 A |
Output Voltage |
12 V DC @ 50 A |
Output Voltage |
- 12 V DC @ 300 mA |
Output Voltage |
5 V DC @ 2.50 A |
Number of +12V Rails |
1 |
Physical Characteristics |
Form Factor |
Internal |
Weight (Approximate) |
1.90 lb |
Miscellaneous |
Green Compliance Certificate/Authority |
80 Plus Gold |
Green Compliance Certificate/Authority |
RoHS |
Green Compliance Certificate/Authority |
T�V |
Green Compliant |
Yes |
Green Compliance Certificate/Authority |
WEEE |
Green Compliance Certificate/Authority |
China RoHS |
Warranty |
Limited Warranty |
7 Year |
