Bộ chuyển đổi chế độ mạng TP-LINK

Bộ chuyển đổi chế độ mạng TP-LINK_MC100CM

ĐẶC ĐIỂM NỔI BẬT

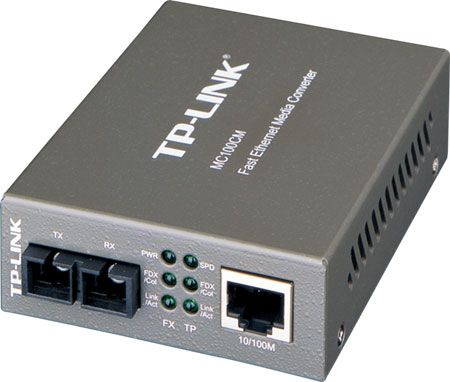

10/100Mbps Multi-mode Media Converter TP-LINK MC100CM
Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
Extends fiber distance up to 2km
Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Extend fiber distance up to 2km
Easy-to-view LED indicators provide status to monitor network activity easily
External power supply

Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function	Half/Full-Duplex transfer mode for FX port
	Full Duplex Flow Control (IEEE 802.3x)
	Half Duplex Flow Control (Backpressure)
	Extends fiber distance up to 2km
	Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Ports	1 100M SC port
Ports	1 100M RJ45 port (Auto MDI/MDIX)
Network Media 10BASE-T	UTP category 3, 4, 5 cable (maximum 100m)
Network Media 10BASE-T	EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T	UTP category 5, 5e cable (maximum 100m)
Network Media 100BASE-T	EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX	Multi-mode Fiber
LED Indicators	PWR, FDX/Col, Link/Act, SPD
Dimensions (WDH)	3.72.91.1 in. (94.573.027.0 mm)
Power Supply	External power supply
Safety & Emission	FCC, CE
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
